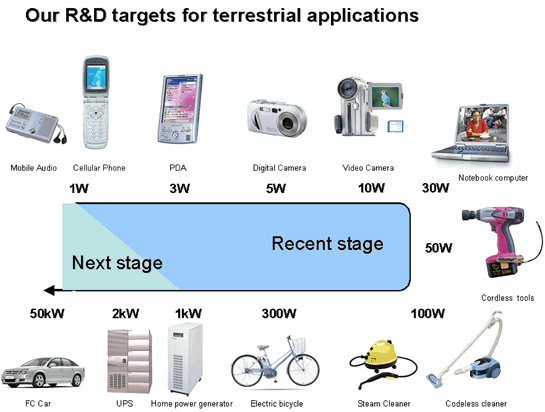

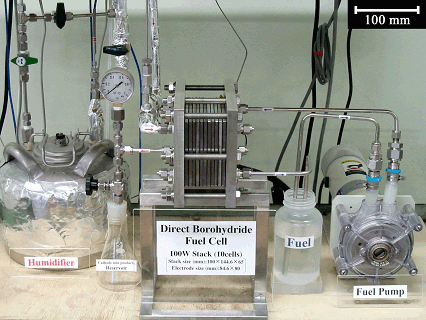

| This is a test system for the DBFC. It is for experimental purposes only. Such system provides data on the stack performance for the ongoing research work. Of cause other important features like the system stability, fuel flow rate,… are also tested with these systems. The DBFC stack can easily be removed and replaced by another. |
|
|
|
DBFC
Stack type for experimental purposes only.

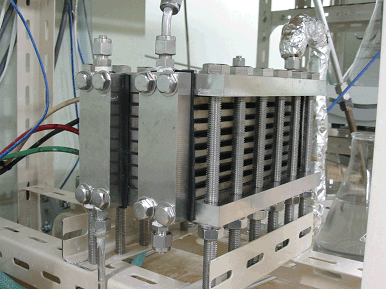

7 Cell stack, 100W
|
|
|
|
DBFC
Stack type for experimental purposes only.
This DBFC is just for checking the functionality of the stack. Normally 7 or 10 cells with an anode area of 200cm² are used in a stack. Such type provides about 200W.
|
|
|
|

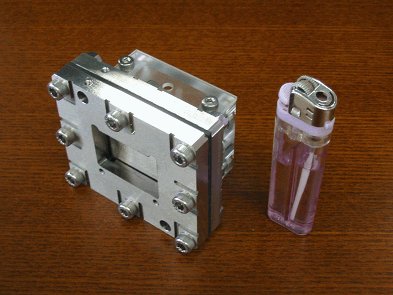

Flat type DBFC [10W]
(without auxiliary machines)
This single cell DBFC is for experimental purposes only. It provides experimental data for the micro DBFC.
|
|
|
|
|

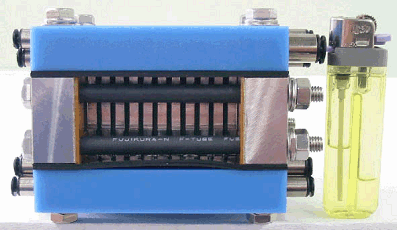

Micro DBFC, 2003 Prototype
- 2 Cells
Open Circuit: 2.2V
Power density: 38.6 mW /cm²
Maximum power: 1.25W (1A, 1.25V)
10wt% of NaBH4 in aqueous alkaline solution provide 1A for 3h 47min. (3,78Ah)
Operates at room temperature
|
|
|
|
|

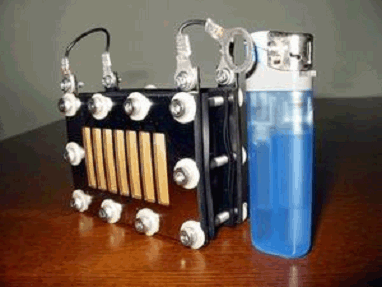

DBFC, 2000 Prototype
This is a small scale prototype of the stack fuel cell type. It was build during the test program in the year 2000.
|
|
|
|
|

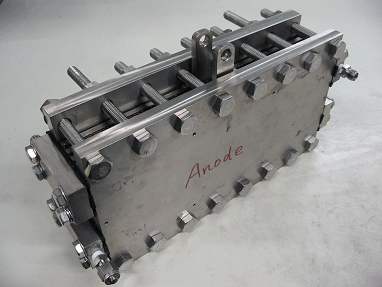

200W Power generator, 2003 Prototype
|
